16V 58F super capacitor module
Categorize：
360F Core Module Sequence
Introduction
-

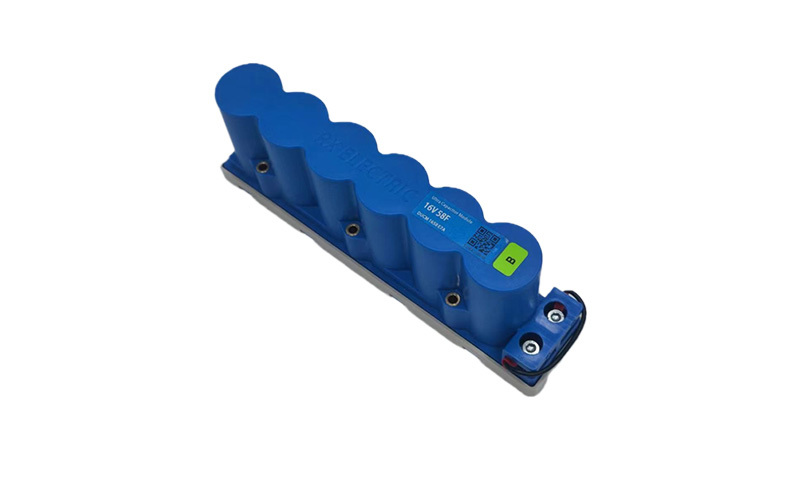

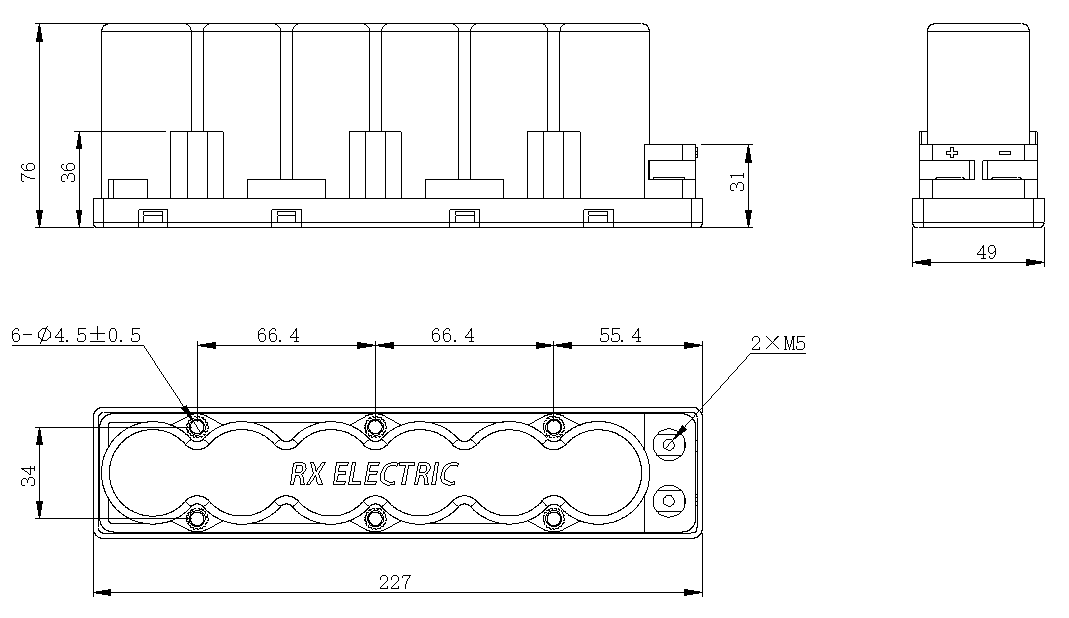

The DUCM 1658 E7A type supercapacitor module consists of 6 series-connected 2.8V 360F supercapacitor cores, and the module casing is made of PP material.
The module features low internal resistance, high power, long lifespan, and low-temperature resistance.
The module core is equipped with a voltage balancing circuit.
Parameters
-
- Performance Parameters
- Service Life
Product Model
DUCM 1658 E7A
Rated Capacity
58F (25℃)
Capacity Deviation
0% ~ +20%
Rated Voltage
16V
Maximum Voltage
17V
Energy Storage
2wh
Equivalent DC Internal Resistance
≤ 30mΩ
Leakage Current
≤ 25mA@16V
Maximum Continuous Current
40A (T=△40℃)
Peak Current
231A (<1S, not repeated within 24h)
Operating Temperature
-40℃ - 65℃
Storage Temperature
-40℃ - 70℃
-
Charging and discharging process
A) Charge the module to the rated voltage UR with a constant current I
B) Maintain the rated voltage for 5 minutes
C) Discharge the module to <0.2V with a constant current I
D) U1=80%UR, U2=50%UR
1. Capacity calculation method
C=I*(T2-T1)/(U1-U2),
C: Capacity (F)
I: Discharge current (A)
T2-T1: Discharge time (S)
U1-U2: Voltage change (V)
2. DC ESR (Direct Current Equivalent Series Resistance) measurement method
DC ESR = ΔU / I ,
ΔU: Voltage change over 10ms
I: Discharge current (A)
Test Method
-
- Performance Parameters
- Service Life
Product Model
DUCM 1658 E7A
Rated Capacity
58F (25℃)
Capacity Deviation
0% ~ +20%
Rated Voltage
16V
Maximum Voltage
17V
Energy Storage
2wh
Equivalent DC Internal Resistance
≤ 30mΩ
Leakage Current
≤ 25mA@16V
Maximum Continuous Current
40A (T=△40℃)
Peak Current
231A (<1S, not repeated within 24h)
Operating Temperature
-40℃ - 65℃
Storage Temperature
-40℃ - 70℃
-
Charging and discharging process
A) Charge the module to the rated voltage UR with a constant current I
B) Maintain the rated voltage for 5 minutes
C) Discharge the module to <0.2V with a constant current I
D) U1=80%UR, U2=50%UR
1. Capacity calculation method
C=I*(T2-T1)/(U1-U2),
C: Capacity (F)
I: Discharge current (A)
T2-T1: Discharge time (S)
U1-U2: Voltage change (V)
2. DC ESR (Direct Current Equivalent Series Resistance) measurement method
DC ESR = ΔU / I ,
ΔU: Voltage change over 10ms
I: Discharge current (A)
